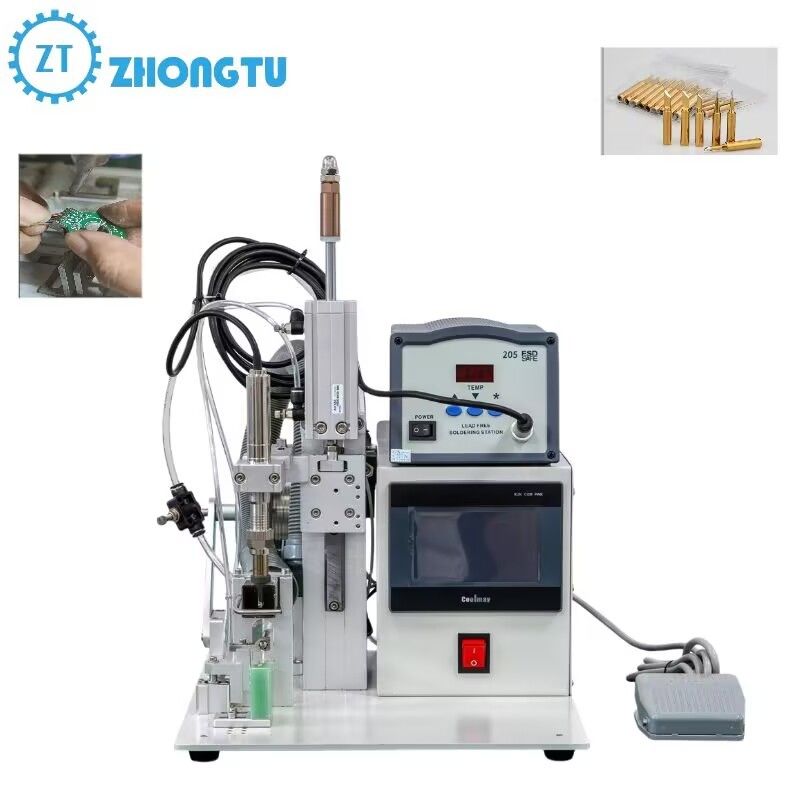

Semi-automatic Welding Wire Machine Manual Solder Spot Welding Small Soldering Equipment

Semi-automatic Welding Wire Machine Manual Solder Spot Welding Small Soldering Equipment

1. Semi-Automatic Operation Mode

• Combines manual manipulation (e.g., positioning the soldering iron) with automated functions (e.g., solder wire feeding, temperature control).
• Operators control the soldering path manually while the machine handles repetitive tasks, striking a balance between human flexibility and automation efficiency.

2. Modular and Compact Design

• Features a compact structure with modular components (e.g., soldering iron holder, solder feeder, control panel), suitable for limited workspace.
• Easy to install and relocate, integrating smoothly into existing manual or semi-automated production lines.

3. Adjustable Process Parameters

• Allows precise control over key parameters:
  • Soldering temperature (programmable within a wide range, e.g., 100–450°C).
  • Solder wire feeding speed and volume.
  • Preheating time and cooling cycles (for specific applications).
• Enables adaptation to different solder types (e.g., leaded/lead-free) and component materials.

4. Manual Control Interface

• Equipped with user-friendly operation panels (e.g., digital displays, push buttons, foot pedals) for real-time parameter adjustment.
• Pedal switches often trigger automatic solder feeding, freeing operators’ hands for precise positioning.

5. Versatility in Application Scenarios

• Suitable for various soldering tasks:
  • Through-hole components (e.g., resistors, capacitors).
  • Simple SMD (Surface Mount Device) soldering.
  • Prototype development and small-batch production.
  • Repair and rework of electronic components.

6. Cost-Effective Automation

• Lower investment cost than fully automatic systems, making them accessible for small-to-medium enterprises (SMEs).
• Reduces labor costs by minimizing manual solder wire handling and temperature management.

7. Quick Setup and Changeover

• Enables rapid configuration for different product models:
  • Adjust soldering parameters via digital interfaces.
  • Replace soldering tips or fixtures for varying component sizes.
• Ideal for production lines with frequent product iterations.

8. Human-Computer Collaborative Operation

• Relies on operators for visual inspection and adaptive decision-making (e.g., adjusting to irregular PCB layouts).
• Automated functions ensure consistent quality for repetitive tasks, reducing human error in parameter control.

9. Minimal Maintenance Requirements

• Simple mechanical structure (e.g., linear solder feeders, basic heating elements) reduces maintenance complexity.
• Modular design allows easy replacement of wear-and-tear parts (e.g., soldering tips, feeder gears).

10. Safety and Ergonomic Design

• Incorporates safety features:
  • Over-temperature protection and automatic shutdown.
  • Insulated handles to prevent burns.
• Ergonomic design minimizes operator fatigue during prolonged use (e.g., adjustable soldering iron stands, comfortable foot pedals).

11. Data Monitoring Capabilities

• Basic models may track operational data (e.g., temperature curves, solder consumption).
• Advanced models support connectivity to production management systems for process optimization.

12. Environmental Adaptability

• Compatible with lead-free soldering processes, aligning with RoHS regulations.
• Efficient heating systems reduce energy consumption and minimize thermal radiation.

Product Parameter:

Product Description:

This semi-automatic soldering machine combines advanced technology with exquisite craftsmanship to bring efficient and accurate welding solutions to the electronics manufacturing industry. It uses an intelligent temperature control system, which can accurately control the solder temperature to ensure stable and reliable solder joint quality. No matter in the face of complex circuit boards or fine electronic components, it can be easily handled to achieve perfect welding.

Its unique tin feeding device is exquisitely designed, and the tin feeding speed is uniform and stable, which can be flexibly adjusted according to different needs. The operation interface is simple and intuitive, easy to use, and even beginners can quickly master the operation skills. At the same time, the equipment has good stability and durability, and through strict quality testing, it can maintain excellent performance in high-intensity work for a long time.

The semi-automatic soldering machine is widely used in electronic assembly, electrical maintenance, communication equipment manufacturing and other fields, which provides strong support for enterprises to improve production efficiency, reduce costs and improve product quality. Choose our brand, is to choose professional and quality.

Detail Photos:
