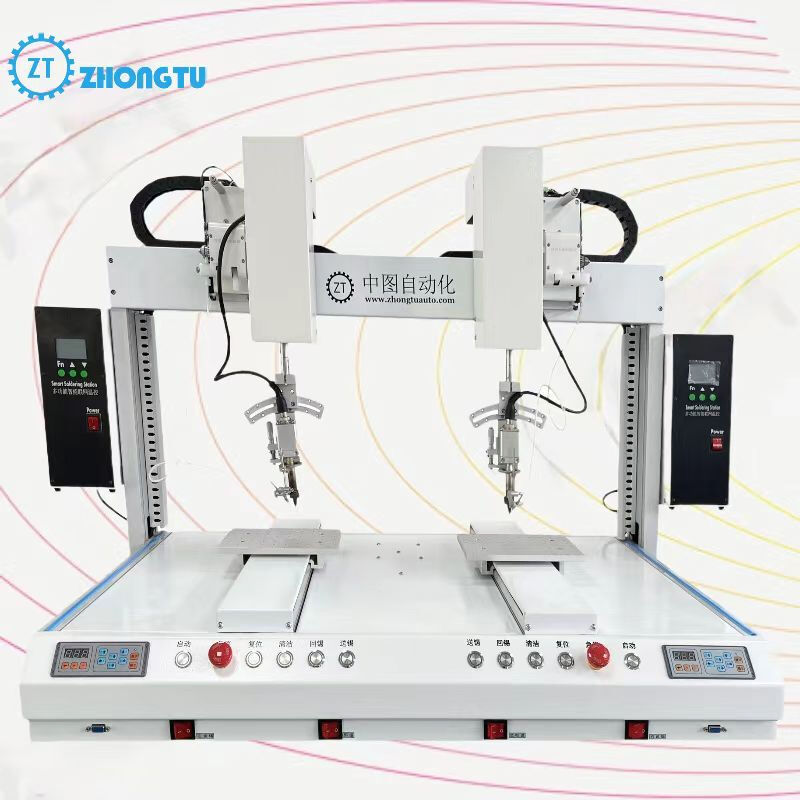

5 Axis Two Heads and Platform Soldering Machine
Automatic solder machine designed for precision manufacturing applications in SMT and DIP processes.
Product Parameters
| Name |
Automatic Soldering Robot |
| Place of Origin |
ShenZhen, China |
| Applicable Industries |
Manufacturing Plant, SMT, DIP |
| Key Selling Points |
Automatic |
| Weight |
85Kg |
| Marketing Type |
New Product 2024 |
| Voltage |
220/110V 50~60Hz |
| Warranty Period |
1 Year |
| Dimensions |
1000*750*850mm |
| Warranty of Core Components |
3 Years |
| Solder Wire |
0.6~1.5mm solder wire |
| Core Components |
PLC |
| Temperature Accuracy |
±3° |
| Power |
680W |
| Solder Feeding Speed |
1~50mm/s |
| Current |
5A |
| Repeat Accuracy |
±0.02mm |
Technical Specifications
| Model |
ZT-HXJ041R |
ZT-HXJ441-R |
ZT-HXJ4411-02 |
ZT-HXJ4411-02R |
Fixture Customization |
| Solder Power |
200W |
200/400w 600W |
200/400W |
200/400/600W |
Need |
| Heating Temperature Range |
0-550ºC |
| Machine Axis Number |
4axis |
4axis |
4axis |
5axis |
Max moving speed |
| X Axis |
400mm |
400mm |
400mm |
400mm/2X |
600mm/s |
| Y Axis |
300mm |
300mm/2Y |
300mm/2Y |
300mm/2Y |
600mm/s |
| Z Axis |
100mm |
100mm |
100mm |
100mm |
400mm/s |
| R Axis |
360° |
360° |
0 |
360° |
±0.05° Error |
| Temperature Errors |
±2° |
| Tin Wire Diameter |
φ0.6mm-1.5mm |
| Teaching File Capacity |
256MB, up to 999 files, single file up to 1000 points |
| Air Pressure |
4-5kg/cm² |
| Weight(Kg) |
58Kg |
68Kg |
75Kg |
85Kg |
Customized |
| Size(mm) |
600*750*850 |
800*750*850 |
850*750*850 |
1000*750*850 |
To order |
Product Images
Manufacturer Profile
Shenzhen Zhongtu Automation Technology Co., Ltd. introduces advanced design concepts and technologies and is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.
The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics sales of accessories.
Products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.
Our Advantages
- We are factory manufacturers
- Reduce overall cost
- Improve automation level
- Improve information level
- Improve product yield
- Provide customers with the most advanced system solutions for automation equipment
Packing & Shipping
Customer Services
| Pre-Sale |
In Sale |
After Sale |
- Product Introduction
- Technical Communication
- Remote consulting service
|
- Show the product
- Explain in detail how to use the product
- Answer the questions raised by customers
|
- Support video service
- The whole equipment is guaranteed for 1 year
- The guide rail/motor/control parts is guaranteed for 3 years
|
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, starting from 2015. There are total about 11-50 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
What can you buy from us?
Soldering machine, Precision spot welding machine, Glue dispenser, Screw machine.
Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board. More details please contact us.
May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
